Security Accessories

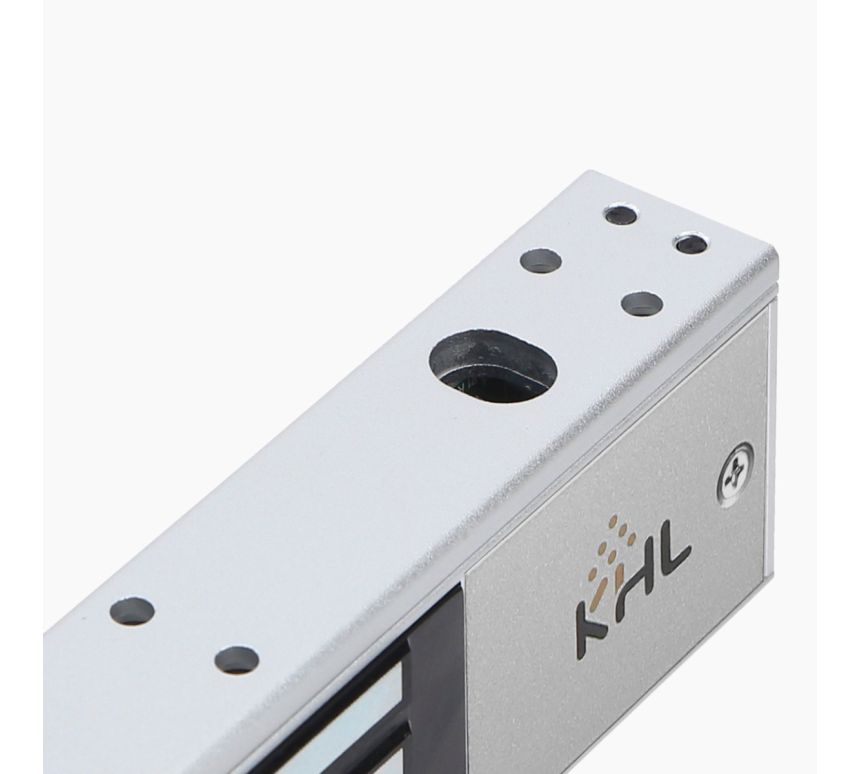

KHL Electromagnetic Lock 600lbs in Grit Silver/ KSEM-SB600
S$ 125.00
Key features:
Fire rated | Built in EMF protection | Industrial grade durability | Monitoring contact | LED indication of EM-Lock status | CE, FCC, RoHS certified | 5-year warranty on manufacturer's defects
Other features:
Dual voltage (12/24 VDC) | Hall effect sensor monitoring output | Built-in Mag. Contact for door status monitoring | Cosmeticize anodized aluminum body | Full range of optional brackets | Anti residual magnetism kick off button
Product Details
- Voltage Input: 12/24 VDC
- Current Draw: 12V/480mA; 24V/240mA
- Holding Force: Up to 600lbs
- Anti-Rust Surface Treatment: Oxidation Treatment
- Operation Temperature: -20~50°C (-4~122°F)
- Operating Humidity: 0~90% (Non-condensing)
- Dimensions (L x W x D): Magnet – 250 x 47 x 26mm | Armature – 180 x 38 x 11mm
For full details on product specifications, refer to product Datasheet under Downloads.
Refer to product User Guide under Downloads.
KSEM-600 series Datasheet
